The narrow, low-cost modules do not have any parameter assignment or diagnostics, so integration in the engineering is significantly easier. This means that circuit and wiring diagrams can be universally used. Moreover, the pin assignment in the wiring is unchanged. They also offer the same operability and the same accessories. The modules have the same mechanical structure as the 35 mm modules. The narrow 25mm modules use a front connector with push-in technology which is included in the scope of delivery. Modules with a width a width of 35 mm can be equipped with a front connector using screw terminal or push-in technology, the connector has to be ordered separately. Standard and High Feature modules with enhanced functionality are only available with the 35mm form factor. As a result, ordering, logistics and spare-parts inventory are considerably simplified The modules have high channel density and low parts variance. Added options (plant components) can be easily activated by pressing a button. The configuration management ("option handling") can be used to configure plants in their maximum configuration and to expand them at a later date without the help of an engineering tool. Function configuration management ("option handling").The IP address and the new name are automatically assigned to this new module by the proximity detection. If an IM fails, it can simply be removed and a new IM inserted. This simplifies the handling of the IMs during replacement and also saves costs. Changes and adjustments can also be easily made at a later date without affecting the user program.ĭue to the so-called "Proximity detection" on PROFINET (LLDP), the ET 200MP interface modules no longer require memory cards.

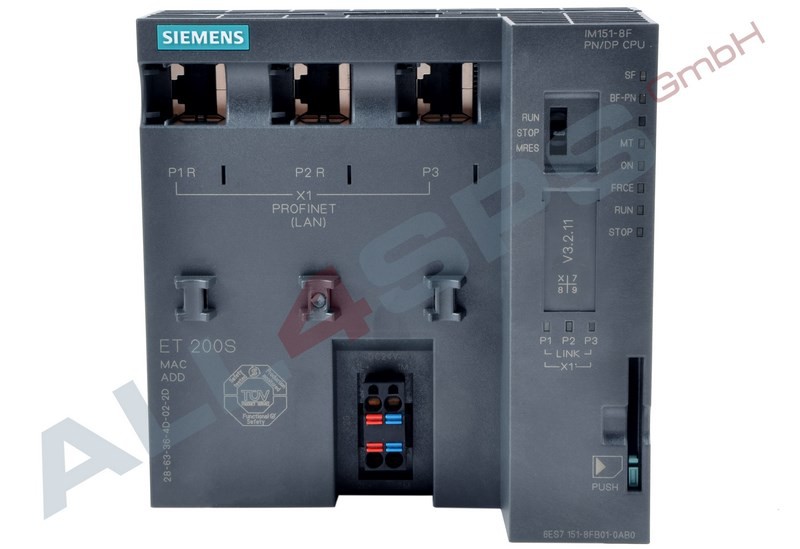

SIEMENS SIMATIC S7 ET200S SOFTWARE
This simplifies the software engineering and considerably improves the servicing and maintenance of the user program. No programming of communication devices or other mechanisms is needed. In addition, communication is only configured. With MSO, the data that an IO controller writes to a digital or analog output module can be read back by up to 3 additional IO controllers. With MSI, the input data of a digital or analog input module can be logically mirrored on up to four IO controllers (depending on IM type). The ET 200MP supports all the MSI and MSO (Modular Shared Input Modular Shared Output) functions.
SIMATIC ET 200MP Interface Modules offer sophisticated functionality even without integrated CPUs:
